In the world of aviation, understanding airport runway markings is essential for both pilots and passengers. Here's a breakdown of some key markings and their meanings.

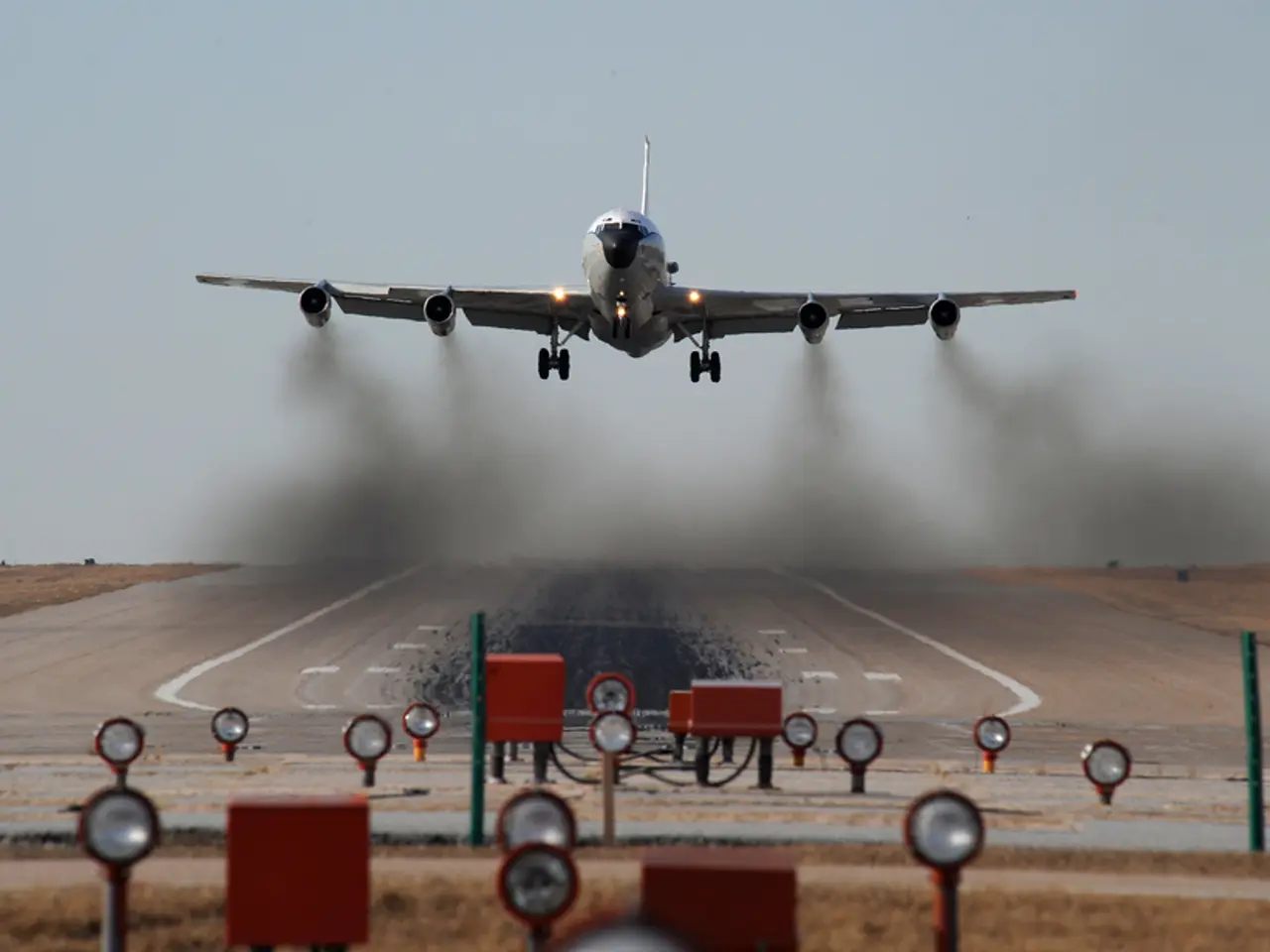

Firstly, it's important to note that runway edge markings are solid white lines on each side of the runway. These lines help pilots to identify the edges of the runway and maintain their position during takeoff, landing, and taxiing.

When holding position on runway 33, it's crucial to hold short of the solid yellow lines (Side B). These lines mark the holding position and should not be crossed unless instructed by Air Traffic Control (ATC).

Chevron markings are another important feature on the runway. These markings are used to show pavement areas aligned with the runway that are unusable for landing, takeoff, and taxiing. These areas may be under repair or may have other issues that make them unsafe for use.

ATC may instruct aircraft to stay clear of ILS critical areas under certain weather conditions. ILS critical areas are specific sections of the runway that must be avoided when the ceiling is less than 200 feet or the Runway Visual Range (RVR) is less than 2,000 feet.

The threshold lights, located at the beginning of the runway, are green. These lights help pilots to align the aircraft with the runway centreline during landing. Since the runway has 4 threshold stripes on either side, it's 100 feet wide.

It's worth mentioning that Frankfurt-Hahn Airport in Germany holds the title for the airport with the longest runway, measuring 3,800 meters. Leipzig/Halle Airport also boasts runways of 3,600 meters, and Berlin Tegel had a runway of 3,023 meters before its closure.
